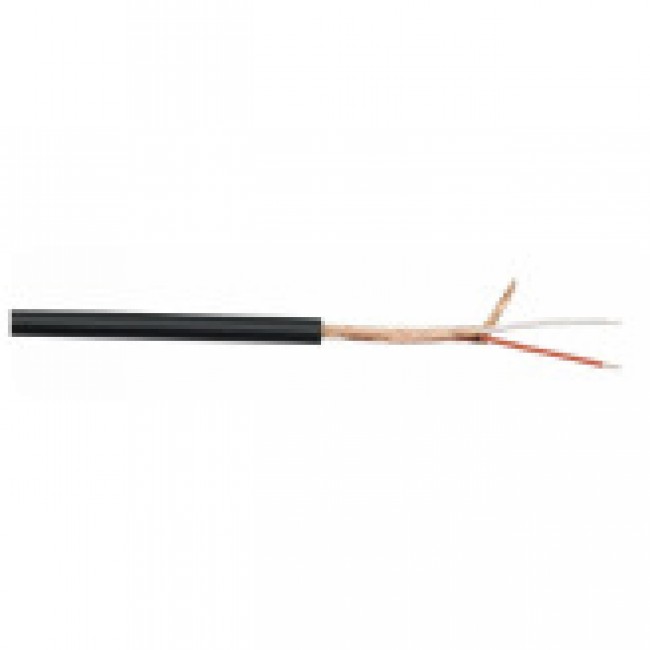

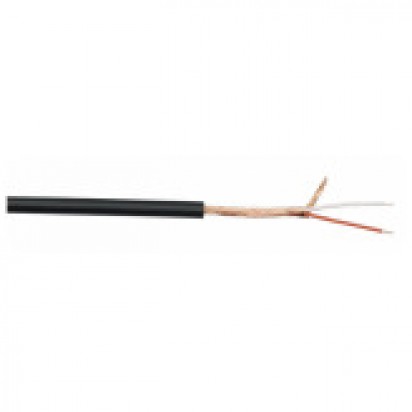

DAP MC-205B Microphone Cable Black 5mm 100m Spool

Conductor drains Ø mm: OFC 10 x 0,10
Conductor insulation: PE red+white
Conductor insulation: 1,0 (Ø in mm)
Filler material: -
1st shield: OFC twisted 40 x 0,12
2nd shield: -
Outer isolation: PVC matte black
Outer isolation Ø in mm: 5

Conductor resistance: 160 Ohm/Km
Shield resistance: -
Capacity Inner conductor: 60 pF/m
Cap. Inner conduct. Shield/Inner conduct.: -
Working temperature: -20~60 °C (min. / max.)
Working Voltage overflash: 30V
Nom Impedance: 110 Ohm
