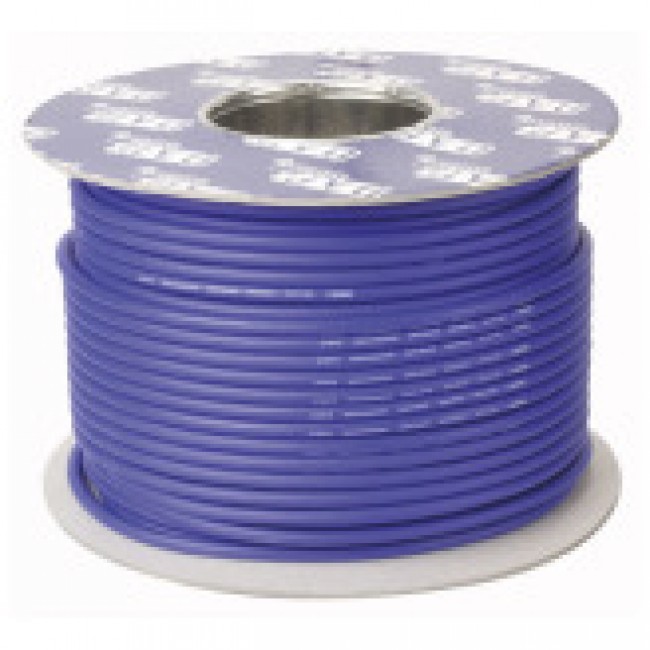

DAP MC-216U Microphone Cable Blue Twisted Isolation 100m Spool

Conductor drains Ø mm: OFC 28 x 0,10
Conductor insulation: PE red+blue
Conductor insulation Ø in mm: 1,5
Filler material: paper + cotton yarn
1st shield: OFC twisted 83 x 0,12
2nd shield: -
Outer isolation: PVC black, blue, red, yellow, green
Outer isolation Ø in mm: 6

Conductor resistance: 80 Ohm/Km
Shield resistance: 25 Ohm/Km
Capacity Inner conductor: 60 pF/m
Cap. Inner conduct. Shield/Inner conduct.: 78 pF/m
Working temperature: -20~60 °C (min. / max.)
Working Voltage overflash: 30V
Nom Impedance: 110 Ohm
