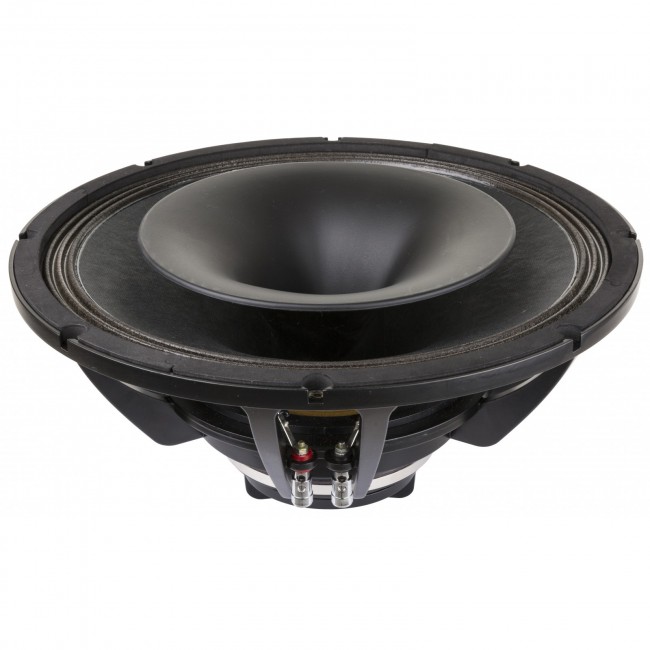

Synq SCX-15450 High precision coaxial 15

Synq SCX-15450 High precision coaxial 15

• This powerful 15 “coaxial speaker is the perfect point source if you care about an excellent loudspeaker design.
• It produces a consistent 60° x 40° dispersion pattern with a smooth tonal response.
• As a perfect point source it allows you to build speaker cabinets without unwanted phase problems.
• Lightweight design thanks to the neodymium magnet structure.
• 15" LF-Neodymium speaker + 1.75" driver (1" voice coil)

• Power handling capacity W(AES):  450
• Max power Watts:  900
• Nominal impedance LF/HF Ω:  8/16
• Frequency range Hz:  50-19K
• LF  :
  • Sensitivity (1W/1m) dB:  99.5
  • Voice coil diameter mm/in:  75.5/3
  • Fs Hz:  50
  • Re Ω:  5.5
  • Qms :  4.50
  • Qes :  0.41
  • Qts :  0.38
  • Vas L:  119
  • Mms gr:  88
  • Cms mm/N:  0.11
  • BL Tm:  19.2
  • Xmax mm:  5.0
• HF  :
  • Throat diameter mm/in.:  35/1.4
  • Power handling capacity W(AES):  60
  • Nominal impedance Ω:  16
  • Sensitivity (2.83V/1m) dB:  106
  • Frequency range Hz:  1K-18K
  • Voice coil diameter mm/in:  63.5/2.5
  • Re Ω:  11
• Notes :
  • AES power is measured with 6dB crest factor continuous pink noise in 2 hours duration.
  • Max power is defined as 3dB higher than the nominal rating.
  • Sensitivity is measured at one meter at 2.83V and 8 ohm nominal impedance.
  • All measurement of the speaker is done after a sufficient high level of 20Hz sine wave test.
  • Xmas is defined at the BL drops by 18% of the original figure.
