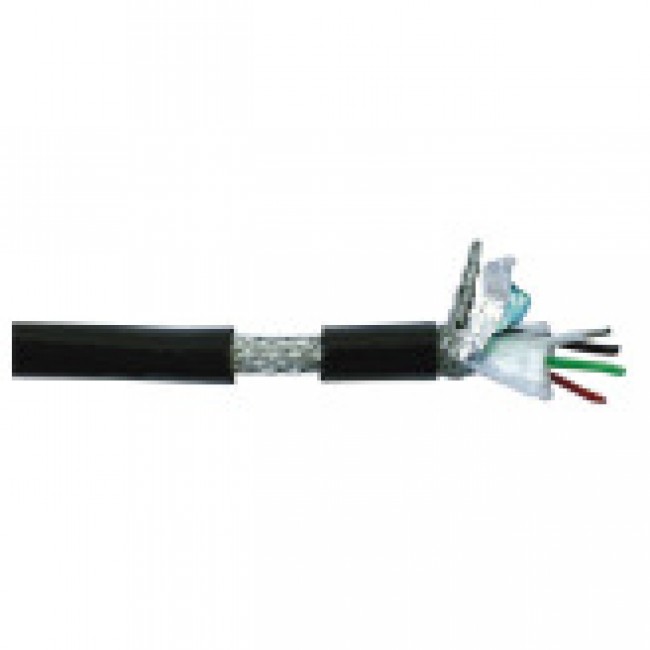

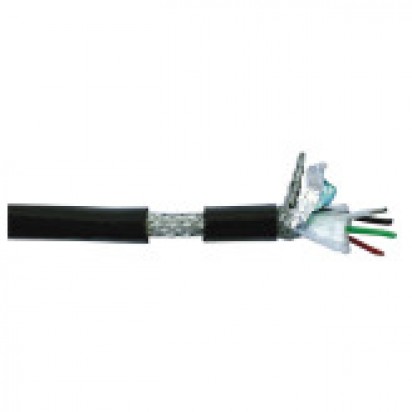

DAP Dig-Quad 4 Pole DMX Cable Black 100m spool

Conductor drains Ø mm: OFC
Conductor insulation: LDPE white + red + yellow + black
Conductor insulation: 1,6 (Ø in mm)
Filler material: paper
1st shield: braided tinned copper
7 x 14 x 0,12
2nd shield: -
Outer isolation: PVC matte black
Outer isolation Ø in mm: 7

Conductor resistance: 130 Ohm / km
Shield resistance: 12,5 Ohm / km
Capacity Inner conductor: 35 pF/m
Cap. Inner conduct. Shield/Inner conduct.: 52 pF/m
Working temperature: -20 ~ 60 °C (min./max.)
Working Voltage overflash: 30V
Nom impedance: 110 Ohm
Length: 100 m
