In 2000, the sector was revolutionised by S.I.U.D.I. We had just designed the first USB- DMX interface. 8 years later, we were happy to launch the S.T.I.C.K. a unique concept perfectly adapted to the future requirements of the market of architectural lighting.

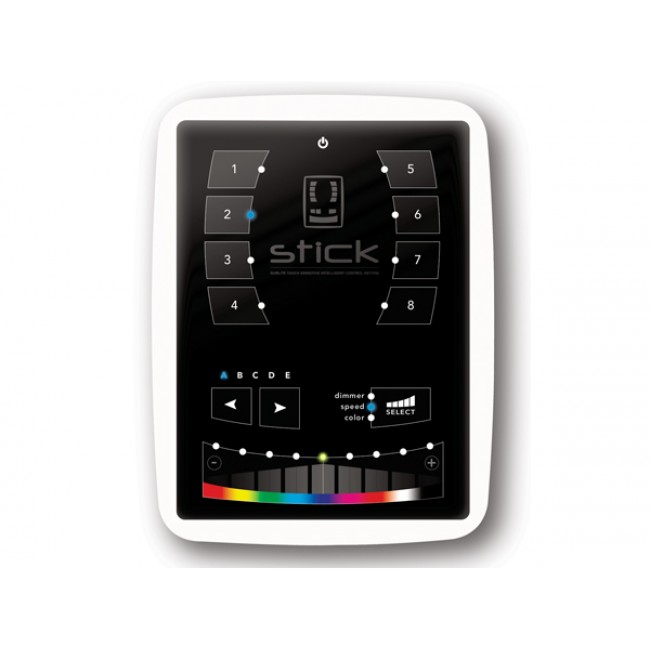

The “Sunlite Touch-sensitive Intelligent Control Keypad” which is commonly called S.T.I.C.K. has the best assets to “Stick to forthcoming needs” and to become a new worldwide standard. This complete stand alone wall-mounted DMX controller is the perfect answer to interior lighting control expectations. Along with a state of the art design, the product comes with amazing features such as 1024 DMX channels, touch sensitive panel, clock/calendar, remote control, Ethernet facilities, and much much more....
Simply screw the STICK's back plate onto a single or double gang wall socket, connect the power and DMX cables to the STICK's block connector, then clip the STICK onto the wall.
The STICK supports up to 5 Areas across 25 pages. This allows you to split up a room or a building and play up to 5 different scenes simultaneously. For example, you could have:
Area A: Control over the ambient lighting of a room, such as some single channel halogens
Area B: A subtle color changing effect playing on LED bars in the ceiling
Area C: Some static colors used on floor lighting
Area D: Control of the wall lighting
Area E: A global override which controls everything
The STICK-KE1 includes an Ethernet network connector allowing you to connect your STICK to a Local Area Network (LAN). Once connected, the unit can be controlled from the STICK remote app or programmed using the Arcolis app for Apple iOS and Google Android devices.
Remote control applications are also available for PC, MAC and Linux and can be downloaded from our sister company www.lightingsoft.com
STICK-GU2 128 channels |
STICK-GA2 512 channels |
STICK-CU4 512 channels |
STICK-DE3 1024 channels |
STICK-KE1 1024 channels |
|
Prices | $ 399 / 299 € | $ 499 / 399 € | $ 499 / 399 € | $ 999 / 769 € | $999 / 769 € |
Design | Glass | Glass | Glass | Glass | Plastic |
Dimensions | 86 x 86 x 11 mm | 86 x 110 x 11 mm | 106 x 146 x 11 mm | 106 x 146 x 11 mm | 130 x 170 x 11 mm |
Weight | 113g | 145g | 200g | 211g | 177g |
USB connection | • | • | • | • | • |
Ethernet connection | • | • | |||
DMX channels | 128 | 512 | 512 | 2x512 | 2x512 |
Easy Stand Alone software (PC) | • | • | |||
Easy Stand Alone 2 software (PC/Mac) | • | • | • | • | • |
ESA Pro software (PC) | • | • | |||
DMX Recorder software | • | ||||
Sunlite Suite 2 Software (PC) | • | • | |||
Easy View 3D Software (PC) | Limited mode | Limited mode | Limited mode | Full mode | Full mode |
STICK Remote app (iOs / Android) | • | • | |||
Arcolis app (iOs / Android) | • | • | |||
Number of scenes | 24 | 99 | 36 | 500 | 200 |
Number of zones | 1 | 1 | 1 | 10 | 5 |
Stand Alone memory | 12K | 76K | 76K | microSD | microSD |
Memory capacity (steps) with 20 channels | 842 | 3200 | 2730 | SD Card Limit | SD Card Limit |
Memory capacity (steps) with 60 channels | 311 | 1200 | 1020 | SD Card Limit | SD Card Limit |
Memory capacity (steps) with 512 channels | 140 | 125 | SD Card Limit | SD Card Limit | |
Power voltage | 5-12V DC 300mA 5.5v max with USB |
5-12V DC 300mA 5.5v max with USB |
5-10V DC 300mA 5.5v max with USB |
5-6V DC 300mA 5.5v max with USB |
5-10V DC 300mA 5.5v max with USB |
Power connector | Screw Terminal | Screw Terminal or RJ45 | Screw Terminal or RJ45 | Screw Terminal or RJ45 | Screw Terminal |
Live Control | Color, Dimmer | Color, Dimmer | Color, Dimmer, Saturation | Color, Dimmer, Speed | Color, Dimmer, Speed |
touch-sensitive buttons | 3 | 4 | 12 + wheel | 10 + wheel | 15 |
Port triggering | 1 | 8 (255 in binary) | 8 (255 in binary) | 8 (255 in binary) | 8 (255 in binary) |
Clock triggering | 100 | 40 | |||
RS232 triggering | • | • | |||
Audio triggering | KU1 Only | ||||
Infra Red triggering | • | ||||
AC/DC adapter | Accessory POWER4M | Accessory POWER4M | Accessory POWER4M | Accessory POWER4M | Accessory POWER4M |
Infrared remote control | Accessory IR-REMOTE | ||||
RJ45 to CONNECTOR BLOCK board | Accessory RJ2BLOCK | Accessory RJ2BLOCK | Accessory RJ2BLOCK |
