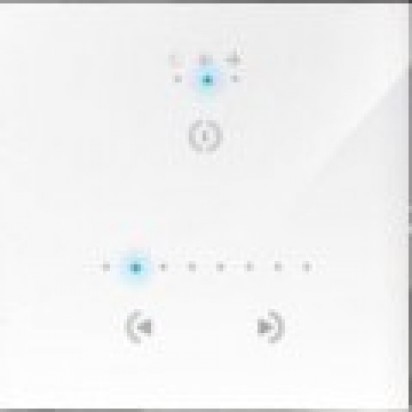

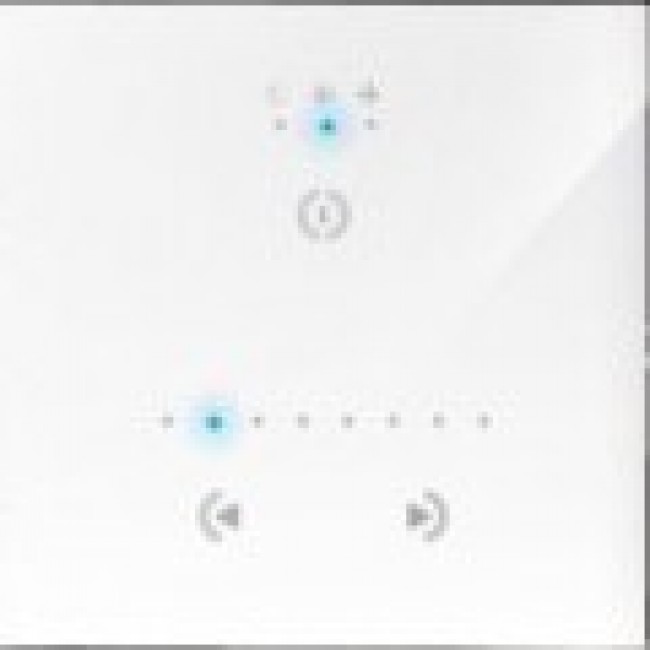

The STICK 2 is one of our most exciting developments within the architectural market. The controller comes pre loaded with RGB effects and can be programmed with the Easy Stand Alone software.
The unit features:
-DMX512 Stand Alone Controller with a glass face
-3 touch sensitive buttons for simplicity and reliability
-dynamic scenes created step by step with adjustable timing
-live setting of the intensity and color of a scene
-programmable with the included USB cable and control software
-5 pin connector block at the rear : 3xDMX 2xpower
-works with 5-12V AC/DC adapter (optional)
-128 DMX channels
-dimensions: 86x86mm, only 10mm thick
| STICK-GU2 128 channels |
STICK-GA2 512 channels |
STICK-CU4 512 channels |
STICK-DE3 1024 channels |
STICK-KE1 1024 channels |
|
| Prices | $ 399 / 299 € | $ 499 / 399 € | $ 499 / 399 € | $ 999 / 769 € | $999 / 769 € |
| Design | Glass | Glass | Glass | Glass | Plastic |
| Dimensions | 86 x 86 x 11 mm | 86 x 110 x 11 mm | 106 x 146 x 11 mm | 106 x 146 x 11 mm | 130 x 170 x 11 mm |
| Weight | 113g | 145g | 200g | 211g | 177g |
| USB connection | • | • | • | • | • |
| Ethernet connection | • | • | |||
| DMX channels | 128 | 512 | 512 | 2x512 | 2x512 |
| Easy Stand Alone software (PC) | • | • | |||
| Easy Stand Alone 2 software (PC/Mac) | • | • | • | • | • |
| ESA Pro software (PC) | • | • | |||
| DMX Recorder software | • | ||||
| Sunlite Suite 2 Software (PC) | • | • | |||
| Easy View 3D Software (PC) | Limited mode | Limited mode | Limited mode | Full mode | Full mode |
| STICK Remote app (iOs / Android) | • | • | |||
| Arcolis app (iOs / Android) | • | • | |||
| Number of scenes | 24 | 99 | 36 | 500 | 200 |
| Number of zones | 1 | 1 | 1 | 10 | 5 |
| Stand Alone memory | 12K | 76K | 76K | microSD | microSD |
| Memory capacity (steps) with 20 channels | 842 | 3200 | 2730 | SD Card Limit | SD Card Limit |
| Memory capacity (steps) with 60 channels | 311 | 1200 | 1020 | SD Card Limit | SD Card Limit |
| Memory capacity (steps) with 512 channels | 140 | 125 | SD Card Limit | SD Card Limit | |
| Power voltage | 5-12V DC 300mA 5.5v max with USB |
5-12V DC 300mA 5.5v max with USB |
5-10V DC 300mA 5.5v max with USB |
5-6V DC 300mA 5.5v max with USB |
5-10V DC 300mA 5.5v max with USB |
| Power connector | Screw Terminal | Screw Terminal or RJ45 | Screw Terminal or RJ45 | Screw Terminal or RJ45 | Screw Terminal |
| Live Control | Color, Dimmer | Color, Dimmer | Color, Dimmer, Saturation | Color, Dimmer, Speed | Color, Dimmer, Speed |
| touch-sensitive buttons | 3 | 4 | 12 + wheel | 10 + wheel | 15 |
| Port triggering | 1 | 8 (255 in binary) | 8 (255 in binary) | 8 (255 in binary) | 8 (255 in binary) |
| Clock triggering | 100 | 40 | |||
| RS232 triggering | • | • | |||
| Audio triggering | KU1 Only | ||||
| Infra Red triggering | • | ||||
| AC/DC adapter | Accessory POWER4M | Accessory POWER4M | Accessory POWER4M | Accessory POWER4M | Accessory POWER4M |
| Infrared remote control | Accessory IR-REMOTE | ||||
| RJ45 to CONNECTOR BLOCK board | Accessory RJ2BLOCK | Accessory RJ2BLOCK | Accessory RJ2BLOCK |
