FBT PROJECT 530BT - Passieve luidspreker - 100V

FBT PROJECT 530BT - Passieve luidspreker - 100V

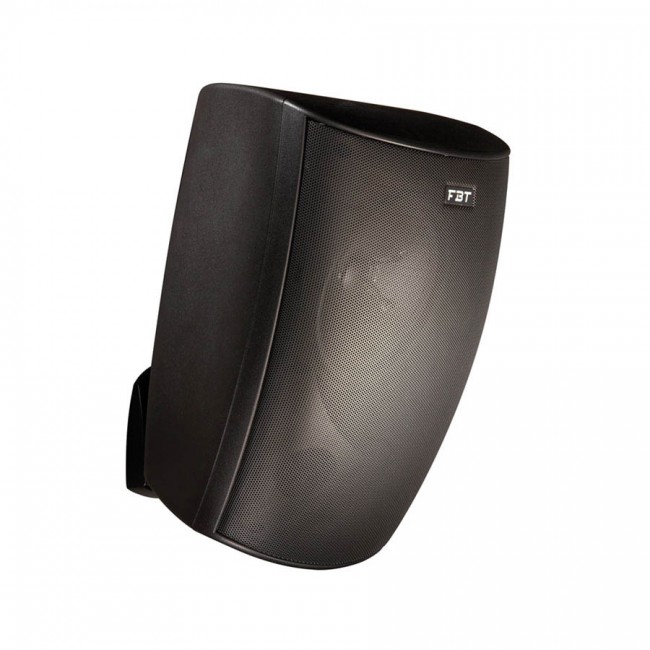

KEY FEATURES PRODUCT DESCRIPTION APPLICATIONS ELECTRONIC SPECIFICATIONS PHYSICAL SPECIFICATIONS Foreground / Background music Distributed speech reinforcement AV production / Playback Near-field monitoring 2-way system White or black ABS enclosure 5" LF woofer 0,75" HF tweeter 100V Line transformer (10/15/20/30W) Directional wall mount bracket included Connection via plug in «euroblock» connector Low Frequency Woofer The FBT 530WHT/BT two way speaker unit is equipped with a 100V line transformer and provides the possibility of an 8 Ohm connection. An exclusive fully adjustable support bracket provide a flexible mounting system for virtually any application. The low frequency section is a 5" woofer and the high frequency section is a 0,75" tweeter. The power selector switch is installed in the rear of the enclosure. The loudspeaker system meets the following performance criteria: line transformer with power taps for 10/15/20/30W, frequency response from 85Hz to 20kHz (-10dB), nominal impedance 8 Ohm, pressure sensitivity 87,5dB. The FBT 530WHT/BT is ideally suited for all applications requiring high quality sound reproduction; as a foreground or background loudspeaker in restaurants and clubs, monitor speaker in churches, schools, conference rooms and hotels. High Frequency Driver Input Connectors Net Dimensions (WxHxD) inch Shipping Dimensions (WxHxD) inch Net Weight Shipping Weight Enclosure Material Grille Euroblock 6,39 lbs 7,49 lbs ABS Matching perforated steel black or white paint finish 60W 30W 120W 85Hz - 20kHz (@-10dB) 55Hz - 24dB oct. 5” 0,75” 6,60 x 9,46 x 7,06 9,44 x 11,81 x 9.84 Dispersion (H x V) Sensitivity 87,5dB (@1W, 1m) 8 Ohm Frequency Response 530 WHT / BT Long Term Power Short Term Power (IEC 268-5) Transformer 100V / 10-15-20-30W Nominal Impedance Max SPL 106dB 100° x 100° Recommended HP filter MONITOR SPEAKER DIAGRAMS 530 WHT / BT 50 100 200 500 1k 2k 5k 10k 20k 96 93 90 87 84 81 78 75 72 69 66 63 60 dB SPL FREQUENCY RESPONSE Hz Horizontal polar 180 165 150 135 120 105 90 75 60 45 30 15 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 0 345 330 315 300 285 270 255 240 225 210 195 250 500 1000 2000 -33 -27 -21 -15 -9 -3 3 -33 -27 -21 -15 -9 -3 3 -33 -27 -21 -15 -9 -3 3 -33 -27 -21 -15 -9 -3 3 180 165 150 135 120 105 90 75 60 45 30 15 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 0 345 330 315 300 285 270 255 240 225 210 195 4000 8000 12500 16000 -33 -27 -21 -15 -9 -3 3 -33 -27 -21 -15 -9 -3 3 -33 -27 -21 -15 -9 -3 3 -33 -27 -21 -15 -9 -3 3 DIMENSIONAL DRAWINGS 6,60" / 167,65mm 9,46" / 240,36mm 7,06" / 179,5mm POWER SWITCH & EUROBLOCK CONNECTOR The speaker can be connected to audio lines at constant voltage (100V / 70V) or with constant impedance (8 Ohm) 530 WHT / BT OFF 10W-100V 15W-100V 20W-100V 30W-100V 530BT PROJEC 06 W- 8 70V ½ PWR
