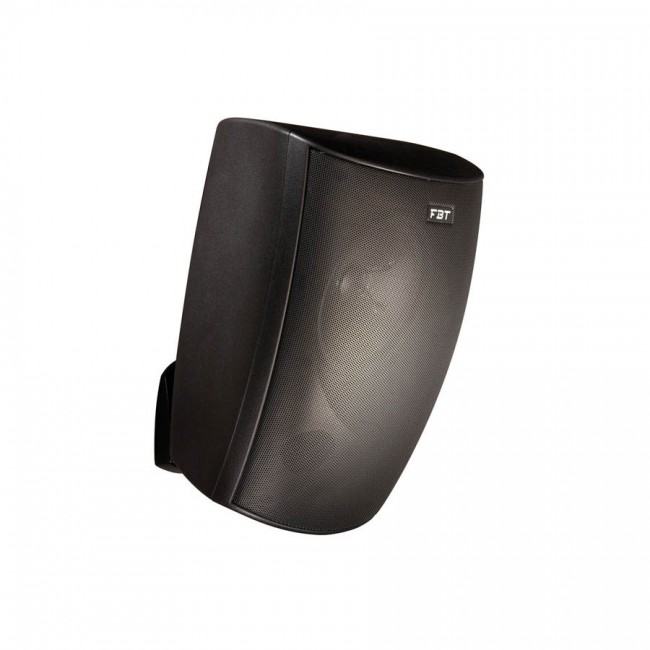

FBT PROJECT 315BT - Passieve luidspreker - 100V

FBT PROJECT 315BT - Passieve luidspreker - 100V

APPLICATIONS ELECTRONIC SPECIFICATIONS PHYSICAL SPECIFICATIONS Foreground / Background music Distributed speech reinforcement AV production / Playback Near-field monitoring 2-way system White or black ABS enclosure 3,5" LF woofer 0,5" HF tweeter 100V Line transformer (2/4/7.5/15W) Directional wall mount bracket included Connection via plug in «euroblock» connector Low Frequency Woofer The FBT 315WHT/BT two way speaker unit is equipped with a 100V line transformer and provides the possibility of an 8 Ohm connection. An exclusive fully adjustable support bracket provide a flexible mounting system for virtually any application. The low frequency section is a 3,5" woofer and the high frequency section is a 0,5" tweeter. The power selector switch is installed in the rear of the enclosure. The loudspeaker system meets the following performance criteria: line transformer with power taps for 2/4/7.5/15W, frequency response from 100Hz to 15kHz (-10dB), nominal impedance 8 Ohm, pressure sensitivity 85dB. The FBT 315WHT/BT is ideally suited for all applications requiring high quality sound reproduction; as a foreground or background loudspeaker in restaurants and clubs, monitor speaker in churches, schools, conference rooms and hotels. High Frequency Driver Input Connectors Net Dimensions (WxHxD) inch Shipping Dimensions (WxHxD) inch Net Weight Shipping Weight Enclosure Material Grille Euroblock 3,3 lbs 4,4 lbs ABS Matching perforated steel black or white paint finish 30W 15W 60W 100Hz - 15kHz (@-10dB) 70Hz - 24dB oct. 3,5” 0,5” 5.61 x 8.04 x 6.38 8.66 x 10.23 x 9.44 Dispersion (H x V) Sensitivity 85dB (@1W, 1m) 8 Ohm Frequency Response 315 WHT / BT Long Term Power Short Term Power (IEC 268-5) Transformer 100V / 2-4-7,5-15W Nominal Impedance Max SPL 100dB 120° x 120° Recommended
