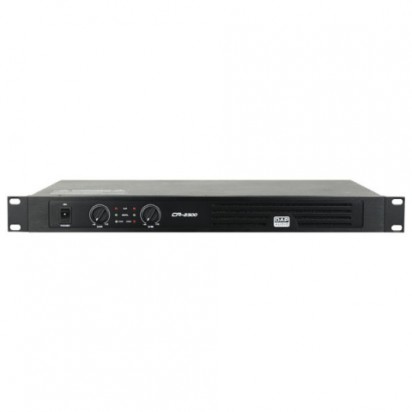

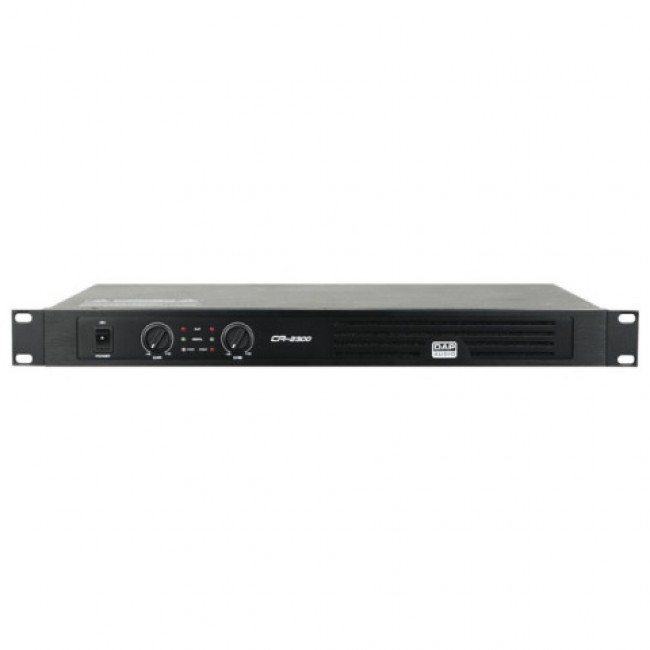

DAP CA-2300 2 ch 300W Amp
The DAP-Audio CA-series Compact Amplifiers are exactly that! A very compact housed power amplifier with all the necessary features for the contemporary users. Within the family of 4 there are two straight forward 2-channel models of different amplifier power, one 3-channel model which has an included crossover to easily setup a 3.1 configuration, and one 4-channel model which also includes a crossover.
Specifications
Output Power
Stereo 2Ohm: 2x 450 Watt RMS
Stereo 4Ohm: 2x 300 Watt RMS
Stereo 8Ohm: 2x 200 Watt RMS
Bridge 2Ohm: Not Allowed
Bridge 4Ohm: 1x 400 Watt RMS
Bridge 8Ohm: 1x 300 Watt RMS
Frequency Response: 20Hz – 20KHz, +0/-1dB
THD: <0.1%
S/N rate: >98 dB A-weighted
Crosstalk: >70dB
Damping Factor: >180
Gain: 30V
Input Sensitivity: 0,9-1,1V (+/-1dBv)
Input Impedance: 20kOhm balanced, 10kOhm unbalanced
Output Mode: Stereo / Bridged
Amp Technology: Class D
Power Supply: SMPS
Protection: Clip Limiter (Fixed)
Short Circuit
Overheat
Overload
DC Voltage
Soft Start
Cooling: Forced-air by radial fan
Airflow: Front to back
Input Connectors: 3-pin XLR, TRS 6,3mm Jack
Output Connectors: Speakon, TRS 6,3mm Jack
Power Connector: IEC
Input Voltage: 210~240VAC… 50/60Hz
Power Consumption: 750W
Dimensions: 484x281x44mm
Installation depth: 278mm (excl. conn.)
Weight: 4,7Kg
