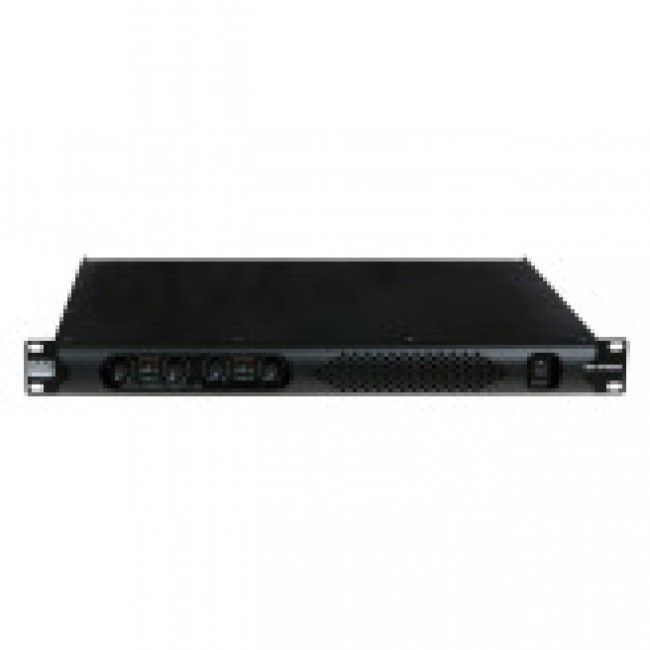

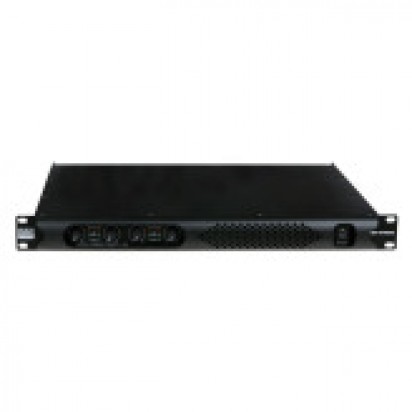

DAP Qi-4400 4 Ch. Install Amp 4x 400W

DAP Qi-4400 4 Ch. Install Amp 4x 400W

0 beoordeling(en). 0 beoordeling(en).
€589,00
Aantal:
-
+
Merk: DAP
Model: RZD4531
Beschikbaarheid: Niet op voorraad

The Qi-amplifier range is developed for installation use to create a perfect match with the Xi installation speaker range. Due to the rugged steel housing it can also be applied for mobile use. With only 1U it gives power for 4 channels. All 4 channels are individual controllable and bridge mode can be set for each stereo pair. With the SMPS and Class-D amplification it is a light weight solution with a high efficiency power consumption / power output ratio. An advanced protection circuit will protect the amplifier and it's connected speakers. It has a short circuit/ thermal, DC ,RF protection and a soft start system. The Qi-amplifiers are made with high-quality low deviation components to ensure a perfect sound quality and a long life time.

Specifications

Output power
Stereo 4Ohm: 4x 400W
Stereo 8Ohm: 4x 250W
Bridge 8Ohm: 2x 800W
Parameters
S/N Ratio: >90dB
Input sensitivity: 0,7V
Input impedance: 20kOhm Bal./10Kohm unbal.
Technology: Class-D
Protection: short circuit, DC, RF, Soft start
Cooling: Temp controlled fan
Power supply: SMPS

Connections
Input: 4x XLR
Output: 4x Speaker connector
Power: IEC

Physical
Dimensions: 388 x 435 x 44 (WxHxD)
Installation depth: 370 (excl. conn.)
Weight: 5.8Kg

Electrical
Input Voltage: 100~240VAC...50/60Hz
Power consumption: 875W
