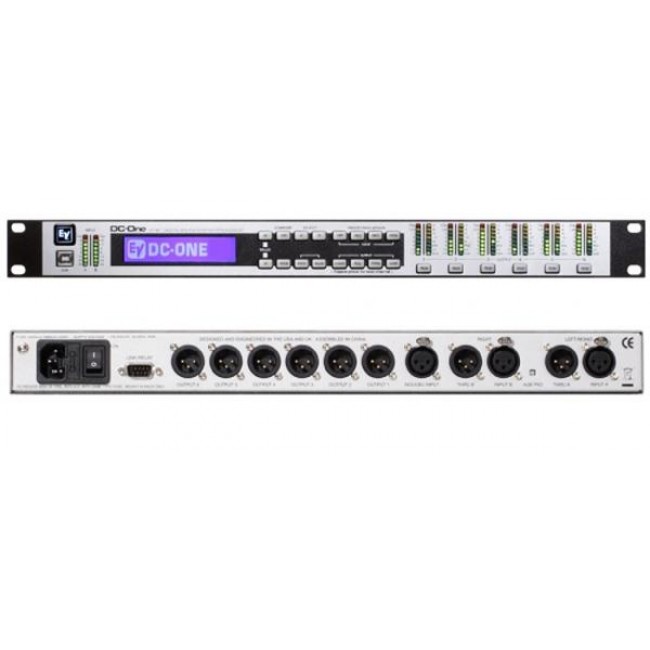

EV DC-One Digital Sound System Processor, 2 Inputs / 6 Outputs, 8 GPI control ports 0
Whether you’re permanently installing a sound system or taking your portable rig to tonight’s gig, the DC-One will help you optimize your loudspeakers for the room they’re in. This fully-featured, 2-in/6-out audio DSP lets you adjust EQ and crossover points, dynamics and delays from the front panel or from PC software that lets you see how you’re shaping your sound. Precise limiters help protect your loudspeaker investment from the unexpected. The DC-One comes pre-loaded with standard speaker configurations and custom settings for many EV loudspeakers.
| Mains Voltage | 100 to 240 V AC, 50 to 60 Hz |
| Power Consumption | 25 W |
| Analog Audio Inputs | 2 XLR IN, electronically balanced 2 x XLR THRU OUT, electronically balanced |
SPECIFICATIONS |
|
| Digital Audio Inputs | 1 x XLR AES/EBU IN |
| Digital Audio Format | AES3, 32 kHz to 192 kHz sample rate |
| Nominal Input Voltage | 1.23 V / +4 dBu |
| Maximum Input Voltage (with -6dB PAD engaged) |
17.3 V / +27 dBu |
| Input Impedance | 10 kOhm |
| Common Mode Rejection | -80 dB @ 1 kHz (typical) |
| A/D Conversion | 24-Bit Sigma-Delta |
| Analog Audio Outputs | 6 x XLR OUT, electronically balanced |
| Nominal Output Voltage | 1.23 V / +4 dBu |
| Maximum Output Voltage | 8.7 V / +21 dBu |
| Output Impedance | 50 Ohm |
| D/A Conversion | 24-Bit Sigma-Delta |
| Frequency Response | 10 Hz to 22 kHz (+/-0.5 dB) |
| THD+N | < 0.01% (band limited 22 Hz to 22 kHz) |
| Dynamic Range | 111 dB (unweighted, band limited 22 Hz to 22 kHz) |
| USB | USB Type B on front panel (PC Interface) |
| 9-pin DSUB | Software Configurable for GPI Preset Recall or Master/Slave |
| Sample Rate | 48 kHz |
| Data Format | 24-Bit |
| Internal Processing | 32-Bit Floating Point |
| Dimensions (WxHxD) | 19 x 14 x 1.72 inch (483 x 357 x 43.6 mm) |
| Weight (Net) | 10.1 lb (4.6 kg) |
