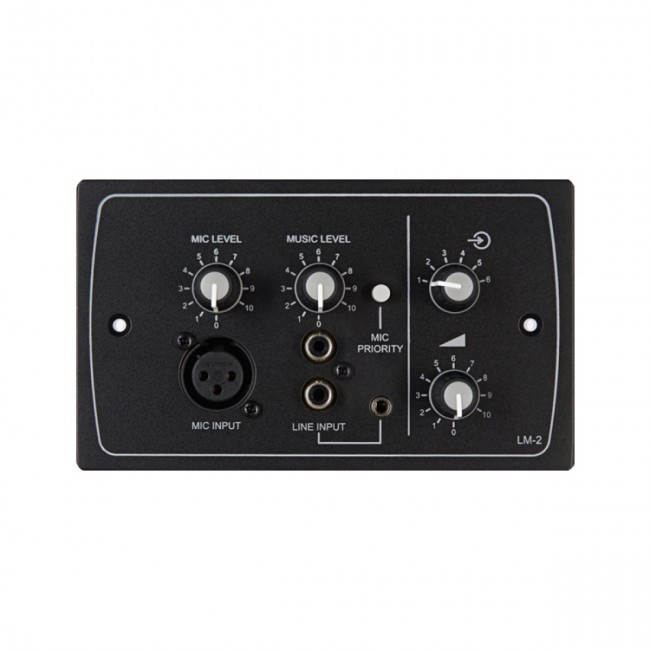

Cloud LM-2B UK: Active Input & Remote Plate (Line & Mic Inputs + RSL-6 Function) for Z4, Z8 and 46/1

Line/Mic/Remote Mixer Module

LM-2B

The LM-2 comes in three fixing varients: LM-2 (UK 2 Gang), LM-2A (USA 2 Gang) & LM-2D (German). This Active Input Plate allows easy connection of a Microphone and/or Line Level Input with Remote Source and Volume Control. Available in Black or White and connects directly via RJ45 connector to any Cloud model with a Facility Port Socket.

Due to the simplistic topology, the cable runs can be up to 1.5km long.

The first RJ45 socket allows an LM-2 Active Wall Plate to be connected per zone via Screened Cat-5 cabling. The second RJ-45 socket on the LM-2 allows a second LM-2 to be daisy chained using the LINK function and sums the audio in the zone.

The LM-2 is regularly used for presentations in seminar and conference suites, hotel ballrooms, multipurpose hospitality application, outdoor events, health and fitness application or lecturers in a classroom situation.

For IP Rated Weatherproof/Outdoor Boxes See: http://www.cloud.co.uk/accessories/detail.php?id=96
