If you would need 2 wireless microphones, and have just one channel available on your inputs, the COM-42 is an ideal wireless microphone set for you. The wireless receiver has a balanced XLR output for each wireless transmitter, and also a unbalanced MIX output on a 6.3mm Jack plug. By using the volume buttons on the front of the receiver, it is easy to setup the desired balance between 2 transmitters. The COM-42 has 99 frequency presents which can easily be set by Infra-red synchronization technique. A clear LCD display shows the signal strength, audio level and carrier frequency of each channel. A COM-42 wireless microphone set contains a receiver and 2 metal handheld transmitters. Also it is possible to use an optional beldpack transmitter.
Specifications
Handheld Transmitter
Type: Dynamic, moving coil.
Polar pattern: Cardioid
Frequency Response: 50-16.000 Hz
Dynamic: >100dBu
Sensitivity (1000 Hz): 2,2 mV/Pa*
(*1 Pa = 94 dB SPL)
Max. SPL: 135 dB (1% THD)
Power supply: 2x Battery UM3, AA1.5V (not included)
Operation time: >6 hours
Accessories: 4 Colour-coded stickers, Mini screw driver
Carrier Frequency Range: 606-630MHz
RF Output: 10 mW
Stability: ±0.005%
Frequency Deviation: ±225 kHz
LED Indicator: Low battery, Power On/Off
Controls: Power On/Off, Gain
Spurious Rejection: <-50 dBm
Dimensions: Ø 50 mm x L 260 mm
Net. Weight: 0,27 kg

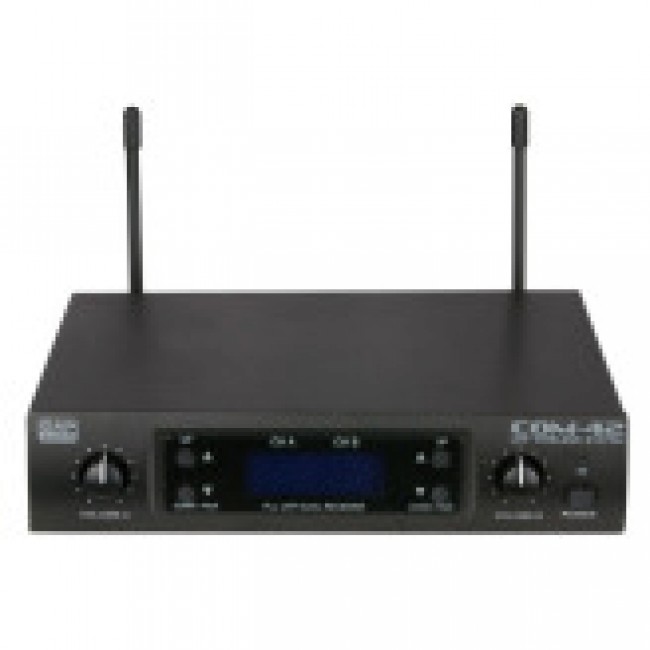

Receiver:
Receiver Type: Dual receiver UHF synthesyzed
Frequency Response: 50-16.000 Hz (±3dB)
Dynamic: >100dBu
Power supply: 15VDC, 300mA (PSU included)
Carrier Frequency Range 606-630MHz
Stability: ±0.005%
Frequency Deviation: ±225 kHz
Display Indicator: Channel, Frequency, AF & RF
Controls: Power On/Off, Volume, Pair, Up/Down
S/N Ratio: >100 dB
Dimensions: 45 X 210 X 210mm
Net. Weight: 1,00 kg
